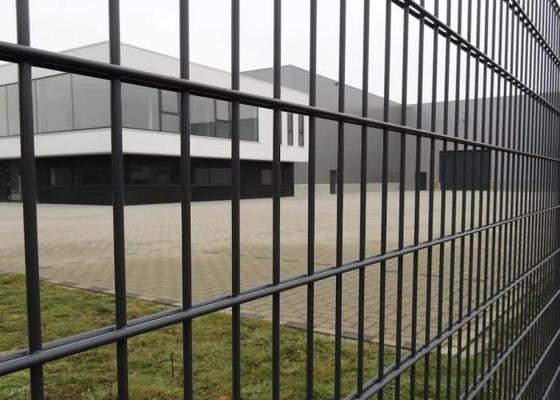

Hot Dip Galvanized Double Loop Wire Fence For Playground Protection
Double Loop Wire Fence Description
Double wire fence as the features of grid structure, beauty and practical, landscaping. In addition, Because of the double wire fencing features of easy transportation and installing without the limitations of special terrain.Features Double wire fencing has simple structure ,firm and durable,easy to difficult to fade , as professional fence is used in airports.hile adding elbow, razor wire, barbed wire and other security accessories, it can protect the enhance sites further more.
Double Loop Wire Fence Specification
|
Height
× Width Panel
mm
|
Mesh Size
mm
|
Wire Diameter
mm
|
Post of Height
mm |
|
|
630×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
1100 |
|
830×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
1300 |
|
1030×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
1500 |
|
1230×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
1700 |
|
1430×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
1900 |
|
1630×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
2100 |
|
1830×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
2400 |
|
2030×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
2600 |
|
2230×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
2800 |
|
2430×2500
|
50×200
|
8×2 + 6 |
6×2 + 5 |
6×2 + 4 |
3000 |
|
Fence Post
|
Dimensions of Type
|
Square post/Rectangle post/Peach post/Round post
•60x60mm and 50x50mm SHS steel Post
•40x60mm RHS steel post
•50x70 and 70x100 Peach shape post
•48mm and 60mm Round section post
|
|
|
Clips/Clamps
|
Metal Clips and Plastic Clips
|
|
Rain hat or caps for posts
|
Metal caps or plastic caps
|
Double Loop Wire Fence Features
1. Attractive appearance
Different design from common fence, Round edges, Triangle edges and square edges make the fence more beautiful and elegant.
2. Built in rigidity
The rolled beam profile at the top and bottom edge of each panels results in maximum rigidity.
3. Longevity
The polyester coating is able to guarantee longevity. With different color can make the fence become markedly.
4.User friendly
Edge fence is easy to install and dismantle, Friendly top and bottom design, Safety and have low maintenance.
Double Loop Wire Fence Process
Double Loop Wire Fence Packing
<1>Plastic film at the bottom to avoid the panel be destroyed
<2>4 metal corners to ensure the panel strong and uniform
<3>wood plate at the top of pallet to keep the under panel
<4>pallet tube size:40*80mm tubes at the botom vertical position
